Focus Area: Enhanced Inspection

Contact

Jeff Elmer
jeffrey.elmer@hexagon.com
732-832-6809

Hexagon is a global leader in digital reality solutions, combining sensor, software and autonomous technologies. We are putting data to work to boost efficiency, productivity, quality and safety across industrial, manufacturing, infrastructure, public sector, and mobility applications. Our technologies are shaping production and people-related ecosystems to become increasingly connected and autonomous – ensuring a scalable, sustainable future. Hexagon’s Manufacturing Intelligence division provides solutions that use data from design and engineering, production and metrology to make manufacturing smarter. For more information, visit hexagon.com/mi.

Hexagon – Portable Scanning, probing, NDT/NDI, and much more.

Problem Statement:

Technicians face the challenge of requiring multiple devices to perform a variety of quality assessments, from non-destructive testing (NDT) to laser scanning and probing. This complicates the workflow, and escalates costs and training requirements. The need is for a singular, versatile system that can seamlessly transition between NDT, high-resolution laser scanning, and precise probing without sacrificing accuracy, efficiency, or functionality.

Technology Solution Statement:

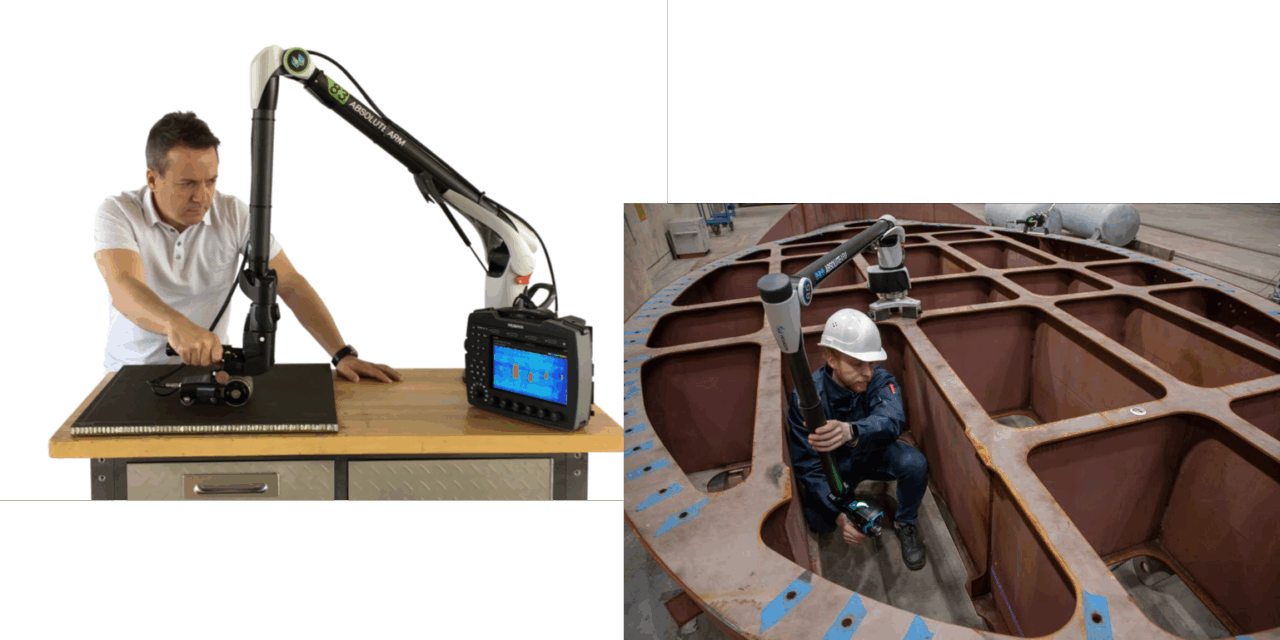

A multifunctional tool like Hexagon's Absolute Arm could resolve multi-tool complexities by consolidating quality assessment needs into one integrated solution, thereby optimizing the quality control process. A 3D scan with the Absolute Scanner can be used on small to large objects with Hexagon’s AS1 and AS1-XL made for the Absolute Arm.

Benefits Statement:

  • High accuracy measurements, with continual support.
  • NDT Sensor
  • For most Metals
    • Capable to resolve volumetric flaws of 0.5mm and smaller
    • Compliant with most codes: ASTM, ASME, etc…
  • For most Welds
    • Capable of resolving through-wall extensions of 5-10%T
    • Compliant with most codes: ASTM, ASME, AWS, EN/ISO, API
  • For most Composites
    • CFRP / GFRP
    • Easy to resolve 2.5mm flaws (and smaller)
  • AS1 / AS1-XL Absolute Laser Scanner
  • Complete digitizing from small to very large parts
